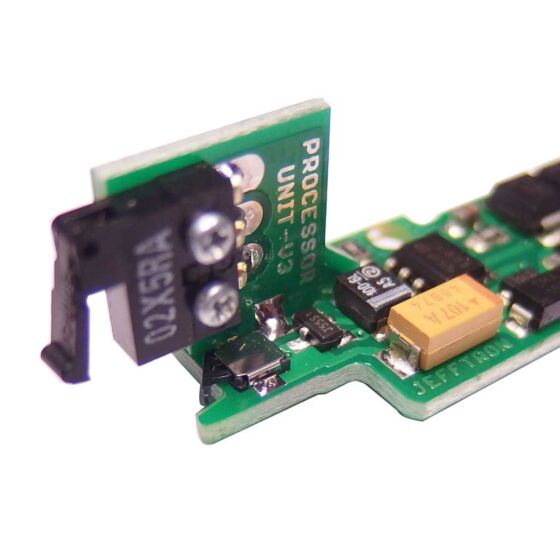

Jefftron PROCESSOR UNIT complete switch assembled with mosfet board for ver.III electric rifle

New professional programmable switch device with hi performance next generation circuit board

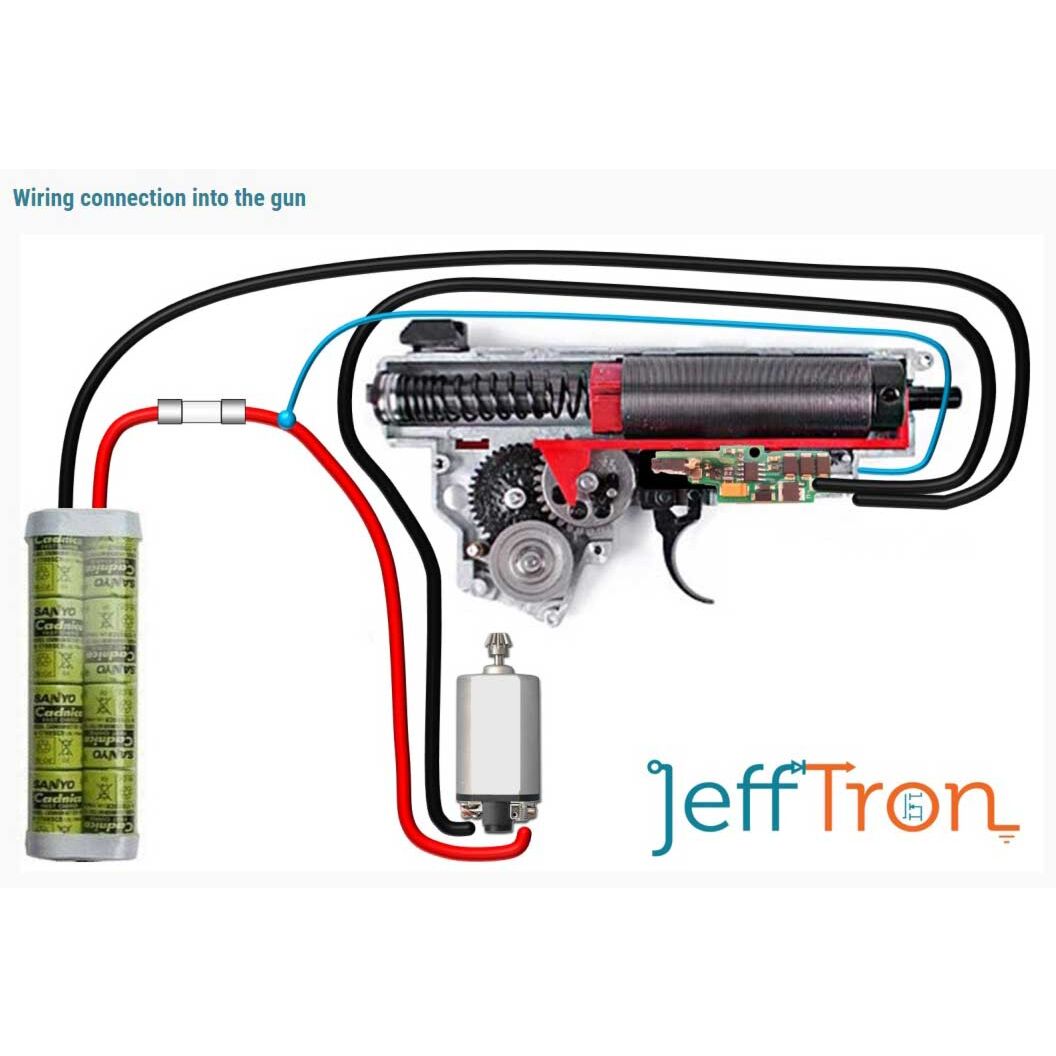

fully wired device to install inside the gearbox instead of the original electric contact
the new circuit will cut the current flow sent to the  internal switch to a small signal current (switch have longer life)
then the electronic unit will encrease the peak and the current drain to the main motor for max performance
then the board held the current drain directly bypassing the trigger switch
this give the stable current drain to the aeg without electricity drop by using max sp180 power spring
the most benefit are those long battery last and rate of fire enhancement
the unit is available and easy install on Marui ak, g36, mp5k, sig aeg rifle and compatible

POWER FUNCTIONS
- Five new shooting modes - combination semi, burst and auto fire
- Adjustable burst (from factory are 3 shots, it can be changed in the range 1 - 10 shots)
- Smooth change rate of fire using PWM motor control
- Pre-cocking function for instant shot in SEMI fire
- Quick first shot at reduced rate of fire
- Mosfet with motor active braking
- Adjustable strength of active braking (can be also disabled)
- Low battery indication 2S and 3S Li-pol, 3S li-fe and 3S li-on
- Monitoring current, voltage and temperature of Processor unit components
- Trigger gun is used for programming this device, motor vibrates as a feedback for user
- Programmed settings are stored in processor unit memory, so it doesn't loose changes after disconnection the battery

FIRE MODES

- Safe - Semi – Auto (unchanged gun function)
- Safe - Semi - Semi/Burst/Auto
- Safe - Semi - Semi
- Safe - Semi - Semi/Burst
- Safe - Semi - Semi (delay between shots, motor vibration when it is ready to fire)
- Safe - Burst - Burst/Auto

included parts:
-electronic unit board
-quality wires connection
-instructions
