TopMax ERGAL CNC cylinder head for Marui SRE bundle with 3 PADs – TCMMV2-SRE

Patented TopMax Elaborazioni system. CNC ERGAL cylinder head with anti-vibrations design, air sealing on the
cylinder provided by a QUAD-RING, elongated spout for perfect air sealing and interchangeable rubber PAD with 3
degrees of hardness to adapt to diversified springs and R.O.Fs. specific for Marui M4/M16 SRE platform.

Specific for Marui M4/M16 SRE platform.

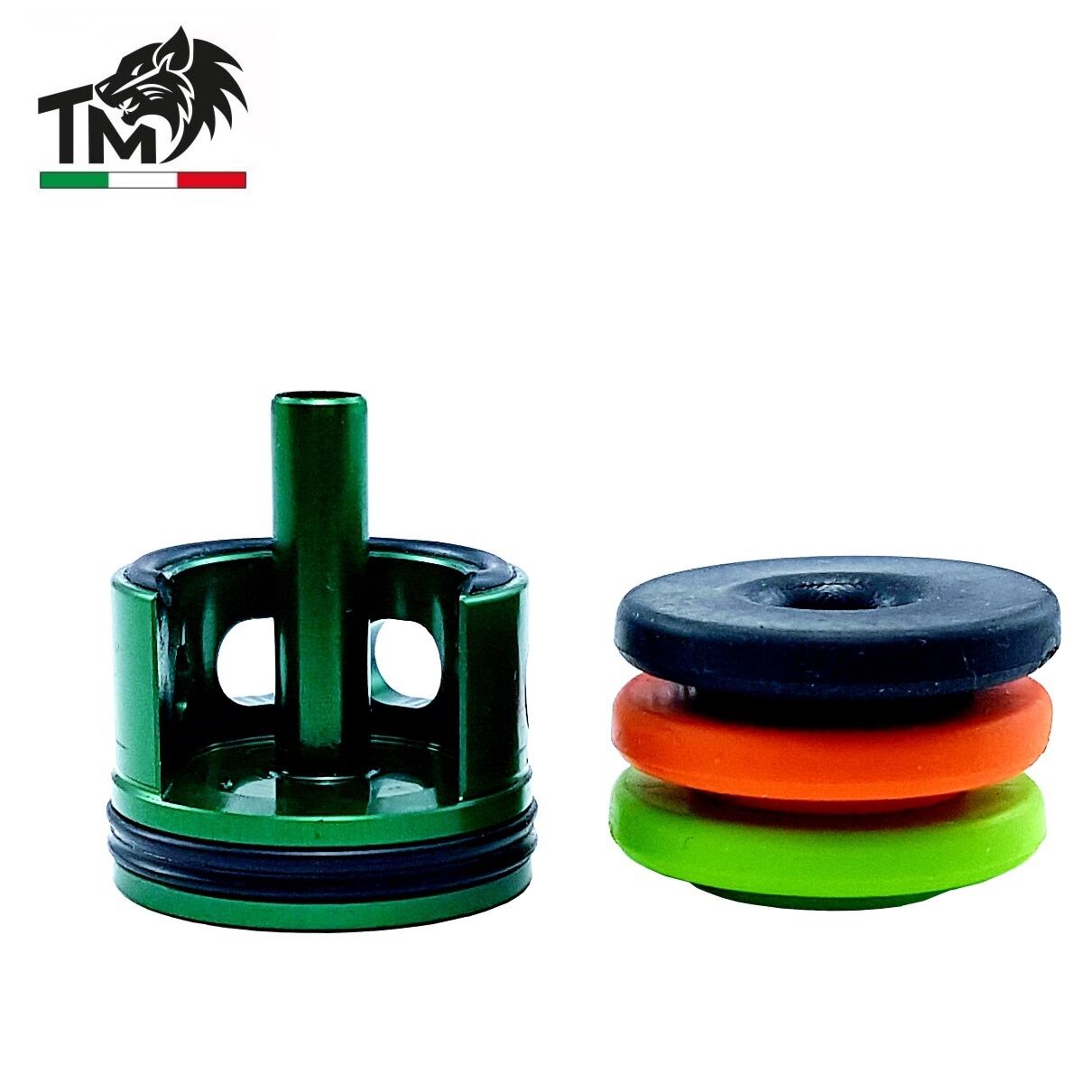

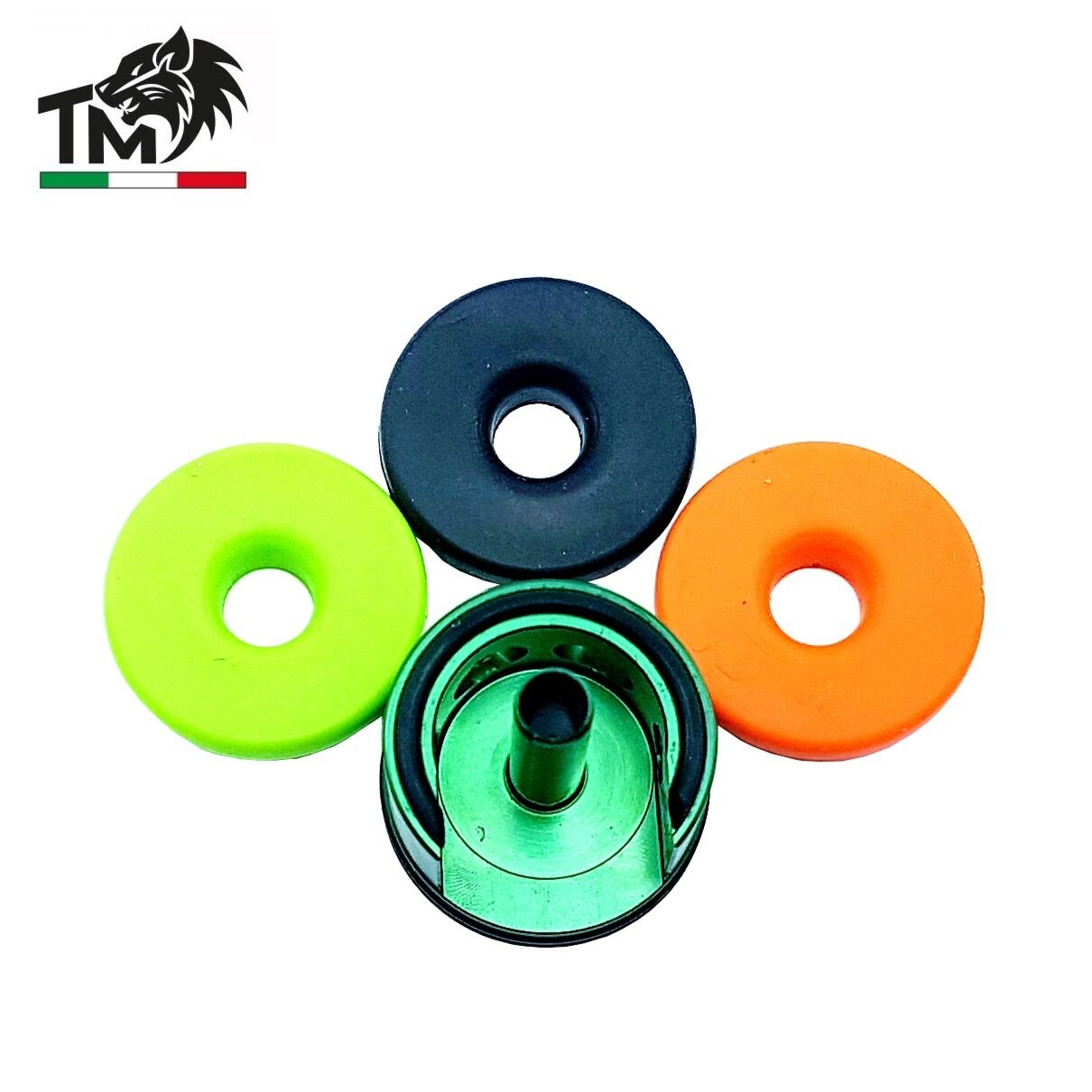

The rubber PADs on all TopMax cylinder heads are interchangeable, and depending on the color they are recommended
for different springs and R.O.Fs.. In this bundle with the cylinder head there are the 3 types of PADs, to manage the
configuration with R.O.Fs. from 10 to 40bb/s and/or springs from 85 to 150m/s (also tested with D.S.G. configuration).
The rubber which the PAD is made from, promotes the absorption of shock and vibrations due to the impac. The rubber with
which the PAD is made from, promotes the absorption of shock and vibrations due to the impact of the piston, the thickness
of the PAD is designed to ensure a perfect A.O.E. (Angle Of Engagement) of the piston on the sector gear, and therefore avoid
the use of shims under the piston head (saving weinght and beating mass), the diameter of the PAD assists the air sealing on
the cylinder, the innovative shape of the PAD combined with the cone made on the cylinder head body, optimally conveys the
air inside the elongated spout of the cylinder head, ensuring a faster and more precise air flow output.
The size and position of the housing holes ensure perfect adherence of the front stop of the cylinder head, made of rubber, on the
plates of the GearBox. The millings on the upper part of the body of the cylinder head reduce and mitigate the vibrations made from
the impact of the piston and ensure the drastic reduction/elimination of the risk of head breaks of the GearBox plates. The spout of
the cylinder head has an external diameter of 4,70mm, its rounded at the top for free sliding of the nozzle and its slightly longer than
other products on the market to help the nozzle to slide as linearly as possible inside the T-HopUp chamber. To obtain the maximum
performance in smoothness, we recommend coupling our cylinder head with TopMax nozzle. To mount the PAD we recommend to have
a look at the assembly tutorial at the link www.facebook.com/TOPMAXsoftair/videos/269555617244706/, and use our specific PAD fixing
glue TMCLLP or Loctite SuperAttak Gel or similar to do it.
