TopMax ERGAL CNC cylinder head for Marui SRE with CHERRY PAD – TCMMV2C-SRE

Patented TopMax Elaborazioni system. CNC ERGAL cylinder head with anti-vibrations design, air sealing on the
cylinder provided by a QUAD-RING, elongated spout for perfect air sealing and interchangeable rubber PAD with
5 degrees of hardness to adapt to diversified springs and R.O.Fs. specific for Marui M4/M16 SRE platform.

Specific for Marui M4/M16 SRE platform.

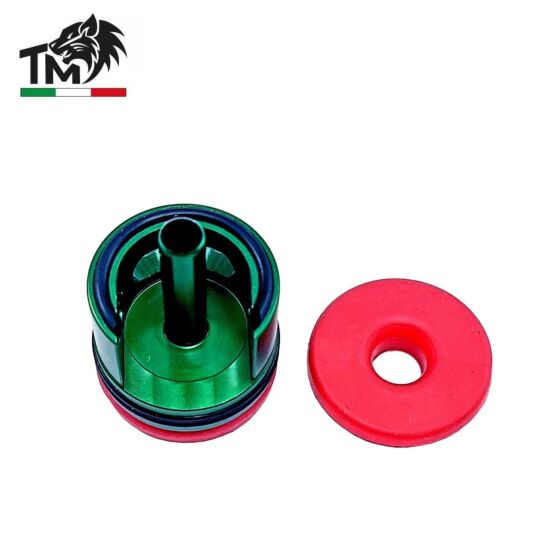

The rubber PADs on all TopMax cylinder heads are interchangeable, and depending on the color they are recommended
for different springs and R.O.Fs.. The CHERRY PAD is pre-mounted on this cylinder head, we recommend this cylinder
head for DMR configurations (provides SOFT impact and sonic feedback) and it is recommended for R.O.Fs. from 10 to
20bb/s and/or springs from 85 to 95m/s. The rubber with which the PAD is made from, promotes the absorption of shock
and vibrations due to the impact of the piston, the thickness of the PAD is designed to ensure a perfect A.O.E. (Angle Of
Engagement) of the piston on the sector gear, and therefore avoid the use of shims under the piston head (saving weinght
and beating mass), the diameter of the PAD assists the air sealing on the cylinder, the innovative shape of the PAD combined
with the cone made on the cylinder head body, optimally conveys the air inside the elongated spout of the cylinder head, ensuring
a faster and more precise air flow output.

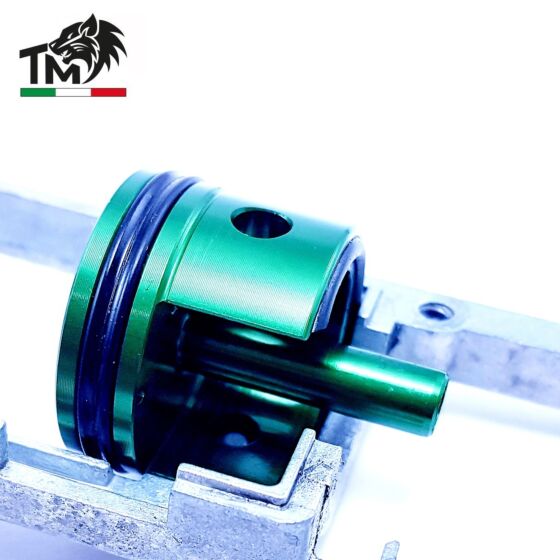

The size and position of the housing holes ensure perfect adherence of the front stop of the cylinder head, made of rubber, on the
plates of the GearBox. The millings on the upper part of the body of the cylinder head reduce and mitigate the vibrations made from
the impact of the piston and ensure the drastic reduction/elimination of the risk of head breaks of the GearBox plates. The spout of the
cylinder head has an external diameter of 4,70mm, its rounded at the top for free sliding of the nozzle and its slightly longer than other
products on the market to help the nozzle to slide as linearly as possible inside the T-HopUp chamber. To obtain the maximum performance
in smoothness, we recommend coupling our cylinder head with TopMax nozzle. To mount the PAD we recommend to have a look at the
assembly tutorial at the link www.facebook.com/TOPMAXsoftair/videos/269555617244706/, and use our specific PAD fixing glue TMCLLP
or Loctite SuperAttak Gel or similar to do it.
